Description

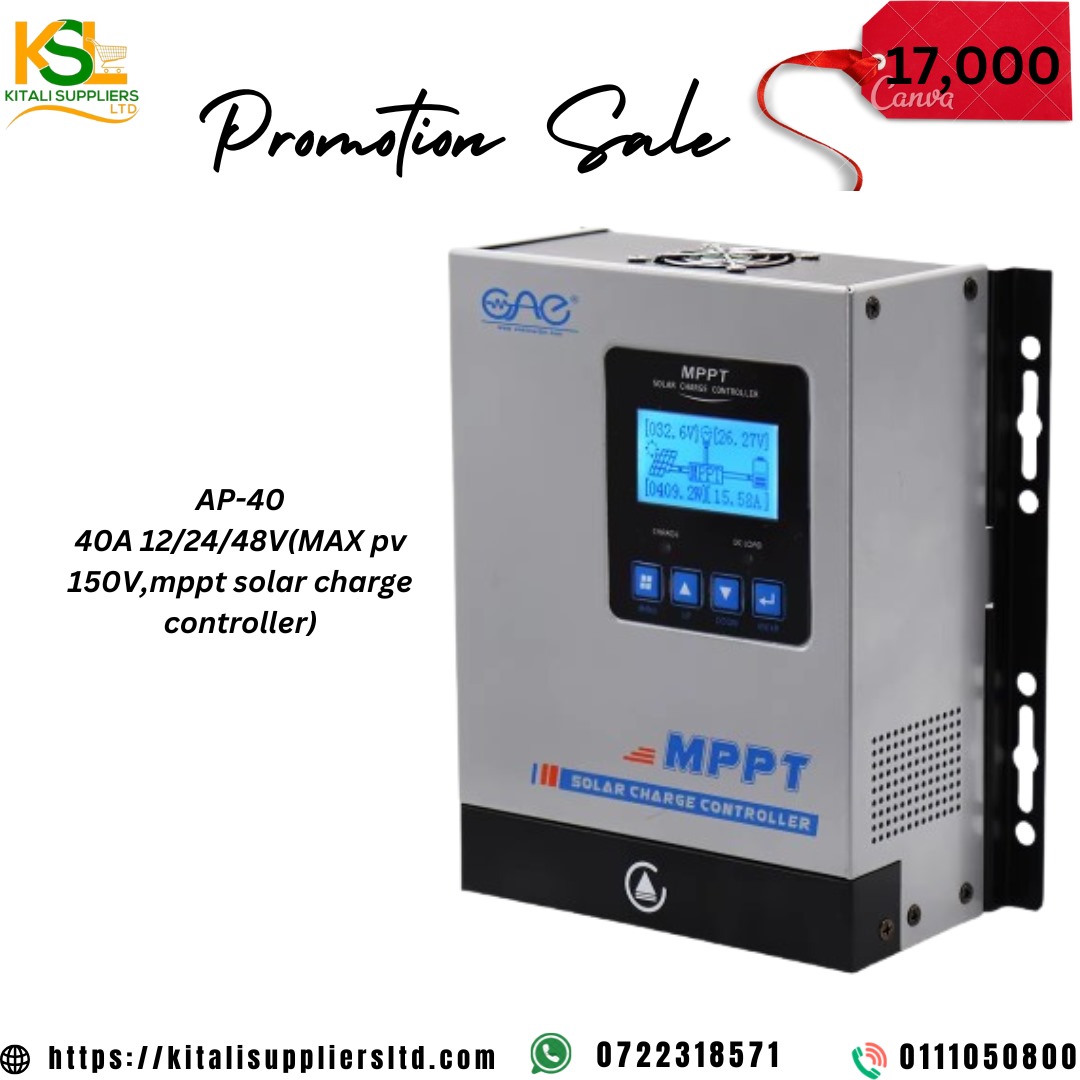

The AP-40 MPPT Solar Charge Controller is designed for efficient solar power management in off-grid or hybrid systems. With 40A current rating, this controller supports 12V, 24V, and 48V battery systems, and allows a maximum PV input voltage of 150V. Built using advanced MPPT (Maximum Power Point Tracking) technology, it maximizes the energy harvest from solar panels and ensures stable and optimized battery charging.
Key Specifications
-
Model: AP40
-
Rated Charge Current: 40A
-
System Voltage: 12V / 24V / 36V / 48V (auto-recognition)
-
Maximum PV Input Voltage: 150V DC
-
Maximum PV Input Power:
-
12V system: up to 570W
-
24V system: up to 1130W
-
48V system: up to 2270W
-
-
MPPT Efficiency: ≥98.5%
-
Tracking Accuracy: ≥99%
-
Battery Types Supported: Lithium, Sealed, Gel, Flooded
-
Temperature Compensation: Yes, via Battery Temperature Sensor (BTS)
-
Display: Multifunction LCD with real-time monitoring
-
Communication Interfaces: RS485 and CAN
-
Protection Features:
-
Overvoltage Protection
-
Over Discharge Protection
-
Overload Protection
-
Reverse Polarity Protection
-
Overcharge Protection
-
High/Low Current Protection
-
Over Temperature Protection
Physical & Environmental Characteristics
-
Dimensions: Approximately 313 × 230 × 91 mm
-
Weight: Approximately 3.5 kg
-
Operating Temperature: -20°C to 50°C
-
Storage Temperature: -30°C to 70°C
-
Humidity Range: 0% to 95% RH (non-condensing)
-
Enclosure Material: Aluminum alloy with anodized finish
Performance Parameters
-
Charge Voltage:
-
12V system: 14.4V
-
24V system: 28.8V
-
48V system: 57.6V
-
-
Standard Charge Current: 40A
-
Maximum Continuous Charge Current: 40A
-
Standard Discharge Current: 40A
-
Maximum Continuous Discharge Current: 40A
-
Peak Discharge Current: 60A (for 3 seconds)
-
Discharge Cut-off Voltage:
-
12V system: 10.5V
-
24V system: 21.0V
-
48V system: 42.0V
-
-
Efficiency: ≥96%
Intelligent Features
-
Battery Management System (BMS): Integrated BMS for real-time monitoring and protection
-
State of Charge (SOC) Indicator: LED indicators for easy monitoring
-
Communication Protocols: Supports RS485 and CAN for integration with energy management systems
-
Load Control Modes: Manual, Light ON/OFF, Light ON+Timer
-
Data Logging: Stores historical data for performance analysis
Applications
-
Residential Solar Energy Storage: Ideal for homes utilizing solar panels for energy independence
-
Backup Power Systems: Provides reliable power during outages
-
Off-Grid Energy Systems: Suitable for remote locations without grid access
-
Small Commercial Energy Storage: Supports energy needs of small businesses
Installation & Compatibility
-
Mounting Options: Wall-mounted design for easy integration
-
Scalability: Modular design allows for parallel connection of multiple units to increase capacity
-
Inverter Compatibility: Works seamlessly with popular inverter brands
-
-
-
-
-
-
