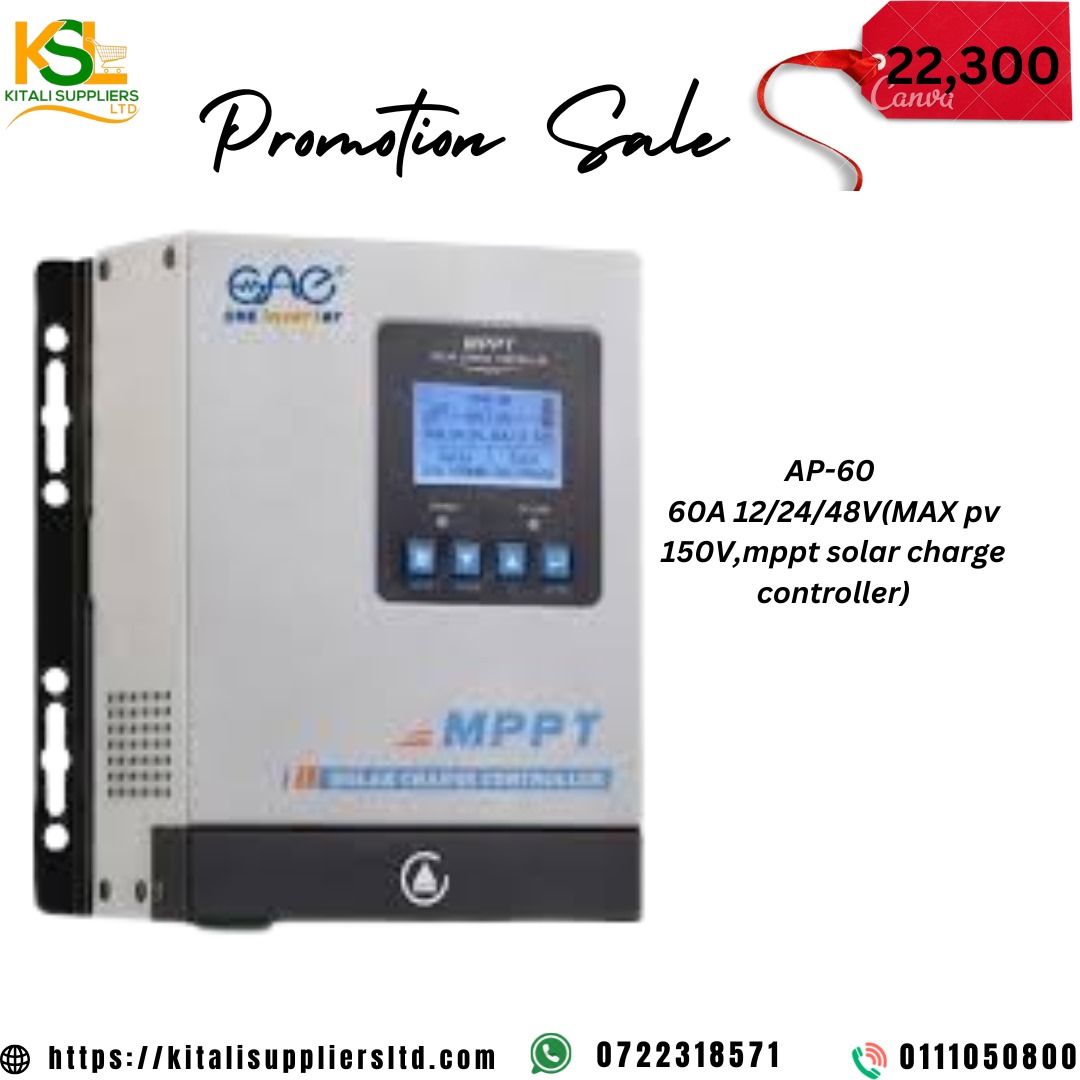

The AP-60 MPPT Solar Charge Controller is a powerful, high-efficiency charge controller designed to optimize the performance of your solar power system. Supporting multiple system voltages (12V, 24V, and 48V) and delivering up to 60A charging current, this controller ensures maximum energy harvest from your solar panels using MPPT (Maximum Power Point Tracking) technology.

With a maximum PV input of 150V, it’s ideal for medium to large solar setups for both home and commercial use. The built-in LCD display provides real-time data, system monitoring, and easy configuration.

Specifications

• Rated Charge Current: 60A

• System Voltage: 12V / 24V / 36V / 48V (auto-recognition)

• Maximum PV Input Voltage: 150V DC

• Maximum PV Input Power:

  • 12V system: up to 900W

  • 24V system: up to 1700W

  • 36V system: up to 2700W

  • 48V system: up to 3400W

• MPPT Efficiency: ≥98.5%

• Tracking Accuracy: ≥99.73%

• Battery Types Supported: Lithium (LiFePO₄), Sealed, Gel, Flooded

• Temperature Compensation: Yes, via Battery Temperature Sensor (BTS)

• Display: Multifunction LCD with real-time monitoring

• Communication Interfaces: RS485 and CAN

  Protection Features

  The AP-60 is equipped with a comprehensive suite of safety features to ensure the longevity and safety of your solar power system:​RICH SOLAR+1ACOSolar+1

  • Overvoltage Protection

  • Over-Discharge Protection

  • Overload Protection

  • Reverse Polarity Protection

  • Overcharge Protection

  • High/Low Current Protection

  • Over-Temperature Protection

    Physical & Environmental Characteristics

    • Dimensions: Approximately 313 × 230 × 91 mm

    • Weight: Approximately 5.5 kg

    • Operating Temperature: -20°C to 60°C

    • Storage Temperature: -30°C to 70°C

    • Humidity Range: 0% to 95% RH (non-condensing)​




      Applications

      • Residential Solar Energy Storage: Ideal for homes utilizing solar panels for energy independence.

      • Backup Power Systems: Provides reliable power during outages.

      • Off-Grid Energy Systems: Suitable for remote locations without grid access.

      • Small Commercial Energy Storage: Supports energy needs of small businesses.

        Installation & Compatibility

        • Mounting Options: Wall-mounted design for easy integration.

        • Scalability: Supports parallel connection of multiple units to increase capacity.

        • Inverter Compatibility: Works seamlessly with popular inverter brands.
