Description

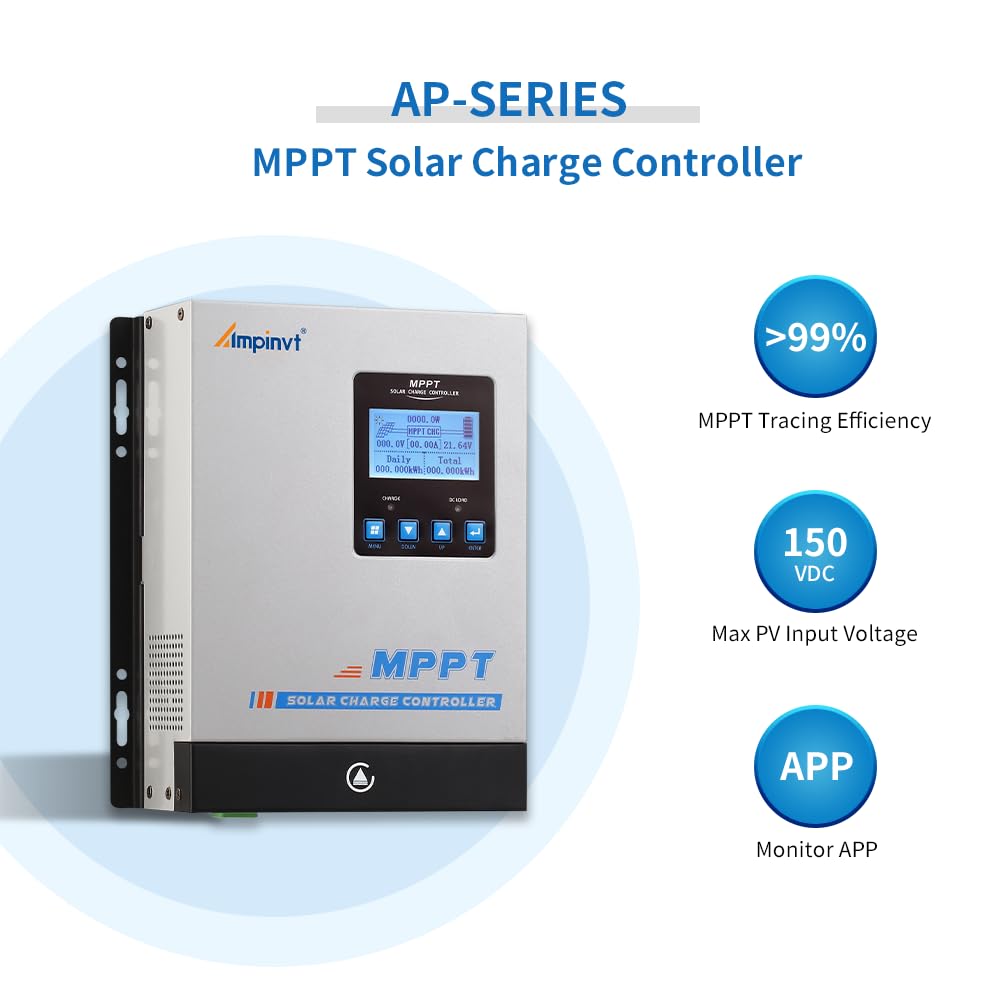

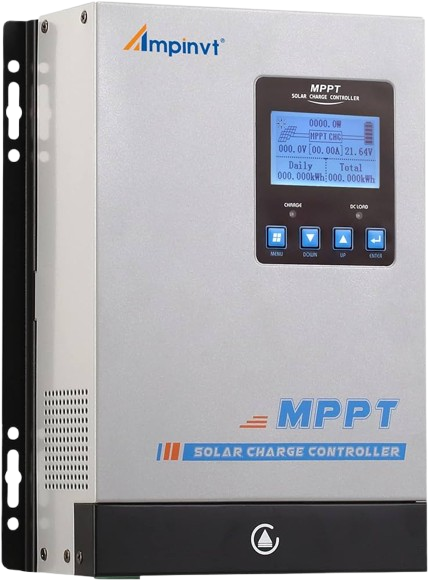

The AP-80 is a high-efficiency MPPT solar charge controller rated at 80A and supports 12V, 24V, and 48V battery systems. With a maximum PV input voltage of 150V, it's ideal for both residential and commercial solar setups. Built to maximize solar power harvesting, it ensures intelligent and efficient battery charging while providing real-time system monitoring via a smart LCD screen.
Specifications
-
Rated Charge Current: 80A
-
System Voltage: 12V / 24V / 36V / 48V (auto-recognition)
-
Maximum PV Input Voltage: 150V DC
-
Maximum PV Input Power:
-
12V system: up to 1140W
-
24V system: up to 2260W
-
36V system: up to 3420W
-
48V system: up to 4540W
-
-
MPPT Efficiency: ≥99%
-
Tracking Accuracy: ≥99%
-
Battery Types Supported: Lithium (LiFePO₄), Sealed, Gel, Flooded
-
Temperature Compensation: Yes, via Battery Temperature Sensor (BTS)
-
Display: Multifunction LCD with real-time monitoring
-
Communication Interfaces: RS485 and CAN
-
Protection Features:
-
Overvoltage Protection
-
Over Discharge Protection
-
Overload Protection
-
Reverse Polarity Protection
-
Overcharge Protection
-
High/Low Current Protection
-
Over Temperature Protection
Physical & Environmental Characteristics
-
Dimensions: Approximately 280 × 380 × 600 mm
-
Weight: Approximately 32 kg
-
Operating Temperature: -10°C to 60°C
-
Storage Temperature: -20°C to 70°C
-
Humidity Range: 0% to 95% RH (non-condensing)
Applications
-
Residential Solar Energy Storage: Ideal for homes utilizing solar panels for energy independence
-
Backup Power Systems: Provides reliable power during outages
-
Off-Grid Energy Systems: Suitable for remote locations without grid access
-
Small Commercial Energy Storage: Supports energy needs of small businesses
Installation & Compatibility
-
Mounting Options: Wall-mounted design for easy integration
-
Scalability: Supports parallel connection of multiple units to increase capacity
-
Inverter Compatibility: Works seamlessly with popular inverter brands
-
-
-
