Description

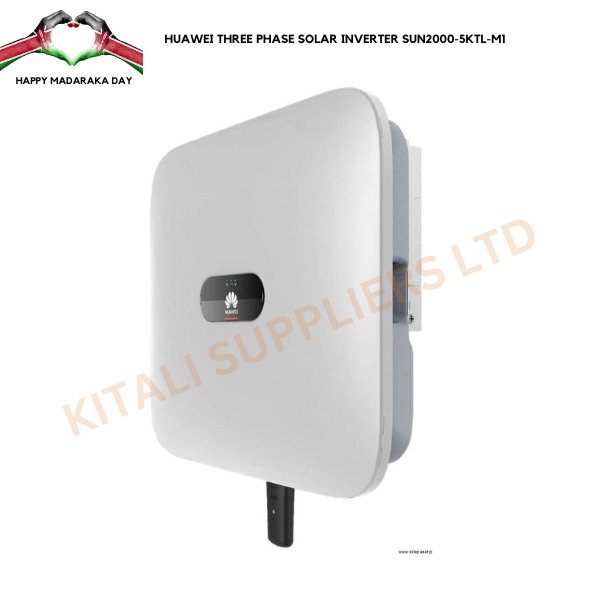

HUAWEI SUN Series Smart String Grid Connect Inverters are of transformerless design for the management of hybrid solar powered PV/AC mains power supply installations. The inverters convert the PV generated DC power to AC, either single or three phase depending on model, and feed to the applied load prioritizing the PV output, supplementing with AC mains power if there is insufficient PV generated output. Inverters are fitted with MPPT trackers to optimise output efficiency and they are designed to be connected in parallel each fed from dedicated solar arrays that can provide power outputs of limitless size. WIFI monitoring devices and Huawei Smartlogger are also provided for monitoring and controlling the power to the grid.
Particular features include:-
- Up to 10 MPPT Trackers
- 98.8% maximum efficiency
- 1-phase and 3-phase inverters up to 10kW come with a battery interface for back-up power and are compatible with Huawei Smart ESS (LiFEPO4) Battery 5kWh – 30kWh
- MBUS Supported - a communication protocol used between meters and the central data collection system or Pre-Payment unit.
- Fuse free design with AC over current, undervoltage, short-circuit and DC/AC Surge protection
- Provided with Anti-Islanding and DC reverse polarity protection and Insulation Monitoring
- EN/IEC 62109-1, EN/IEC 62109-2, IEC 62116 Certifications.
Enclosure Class: IP65
Operating Temp Range: -25° to + 60°C
Night time Power Consumption: <5.5W
The following additional accessories are available as options:-
- SmartLogger3000A: Export limiter that prevents excess PV power being transmitted to the grid
- Smart Dongle-WLAN_FE: Plug and play WLAN & Fast Ethernet communication to support 3rd-party monitoring system
- Smart Power Sensor: Energy Meter for accurate power measurement with LCD display
HUAWEI SUN Inverters incorporate the latest technologies for optimal PV power generation providing highly efficient, safe & reliable installations with smart O&M and grid supporting capabilities that optimize solar energy utilization in Residential, Commercial, and Industrial applications.
Technical Specifications
| Model | SUN 2000 3KTL-L1 | SUN 2000 3KTL-M1 | SUN 2000 5KTL-M1 | SUN 2000 10KTL-M1 | SUN 2000 15KTL-M2 | SUN 2000 20KTL-M3 | SUN 2000 30KTL-M3 | SUN 2000 36KTL-M3 | SUN 2000 50KTL-M0 | SUN 2000 60KTL-M0 | SUN 2000 100KTL-M0 |
| Max. Output & Rated Output Power | 3,300 | 3,300 | 5,500 | 10,000 | 15,000 | 30,000 | 36,000 | 50,000 | 60,000 | 100,000 | |
| Input AC Voltage, VAC | 1x240 | 3x415 | |||||||||
| Max. PV Input Power, W | 4,500 | 4,500 | 7,500 | 15,000 | 22,500 | 30,000 | N/A | ||||
| Max. PV Input Voltage, VDC | 600 | 1,100 | 1,080 | 1,100 | |||||||
| Operating Voltage Range, VDC | 90-560 | 140-980 | 160-950 | 200-100 | |||||||
| Rated Input Voltage, VDC | 360 | 600 | 600@400Vac | ||||||||
| Start Voltage, VDC | 100 | 200 | |||||||||
| Number of MPPT Inputs | 2 | 8 | 12 | 10 | |||||||
| Maximum Input Current per MPPT, A | 12.5 | 11 | 22 | 26 | 22 | 26 | |||||
| Maximum Output Current, A | 240V | 230Vac/400Vac,3W/N+PE | |||||||||
| Rated Output Voltage, Vac | Yes, via Back-up Box | N/A | |||||||||
| Backup Power Output | 15 | 5.1 | 8.5 | 16.9 | 25.2 | 33.5 | 43.3 | 52 | 72.2A @ 400V | 95.3A @ 400V | 160.4A @ 400V |
| Peak Efficiency, % | 97.3 | 98.3 | 98.1 | 98.2 | 98.3 | 98.7 | 98.6 | ||||
| Dimensions (DxWxH) mm | 365x365x156 | 525x470x146.5 | 525x470x262 | 640x530x270 | 1075x555x300 | 1035X700X365 | |||||
| Net Weight, Kgs | 12 | 17 | 25 | 43 | 74 | 90 | |||||
